SPECIFICATIONS
Type: Digital Tablets
Type: Pen Tablet Monitor
Tablet length: 225
Tablet Width: 357 mm
Screen Size(diagonal): 13.3"
Screen Resolution: 1920 x 1080
Resolution Ratio: 2540lpi
Product type: Creative Pen Display
Product Weight: 1.0 kg 2.2 lbs
Product Dimensions: 225 x 357 x 14.6 mm
Pressure Levels: 4096
Power Supply Output: 5 VDC, 2A
Power Supply Input: 100 to 240 VAC, 50/60Hz
Pen Pressure Levels: 4096
Pen Name: Wacom One Pen
Package: Yes
Origin: Mainland China
Model Number: DTC133
Interface Type: USB
Certification: pse
Brand Name: WACOM
Active Area: 11.6 x 6.5 in
Product type: Creative Pen Display
Model Code: DTC133
Product Dimensions (L x W x H)
225 x 357 x 14.6 mm
8.9 x 14.1 x 0.6 in
Product Weight
1.0 kg
2.2 lbs
Stand Adjustability
19 degrees using built-in, fold-out legs
Power Consumption
Power ON mode (MAX): less than 10 W
Power OFF mode: 0.5 W or lower
Power sleep mode: 0.5 W or lower
Power Supply Input
100 to 240 VAC, 50/60Hz
Power Supply Output
5 VDC, 2A
Product color
Flint White
Storage Temperature and Humidity
Temperature: -10 to 60 deg. C
Humidity: 30 to 90% RH (non-condensing) (Maximum storage humidity is 90% at a temperature of 45 deg. C, and maximum storage temperature is 60 deg. C at a humidity of 30%)
Operating Temperature and Humidity
Temperature: 5 to 40 deg. C
Humidity: 30 to 80% RH (non-condensing)
Warranty
1 year
Pen Display Technology
Screen Size (measured diagonally)
13.3 inch
Display Resolution
1920 x 1080 pixels
Display Technology
AHVA
Surface
AG film
Color Depth
8bit
Aspect Ratio
16:9
Viewing Angle
170 deg. (85/85)H / 170 deg. (85/85)V (typ)
Contrast Ratio
1000:1 (typ)
White luminance uniformity
80% (typ)
Pixel pitch
0.1533(H)X
0.1533 (V) mm
Brightness
200 cd/m2 (typ)
Response Time
26m sec (typ)
Active Area
294 x 166 mm
11.6 x 6.5 in
Color Gamut Coverage Ratio
NTSC 72% (CIE1931) (typ)
Pen Type
Pressure-sensitive, cordless, battery-free
Pen Technology
EMR
Pen Name
Wacom One Pen
Pen Pressure Levels
4096
Supported pen tilt angle
60 degrees
Pen resolution
0.01mm/point
(2540 lpi)

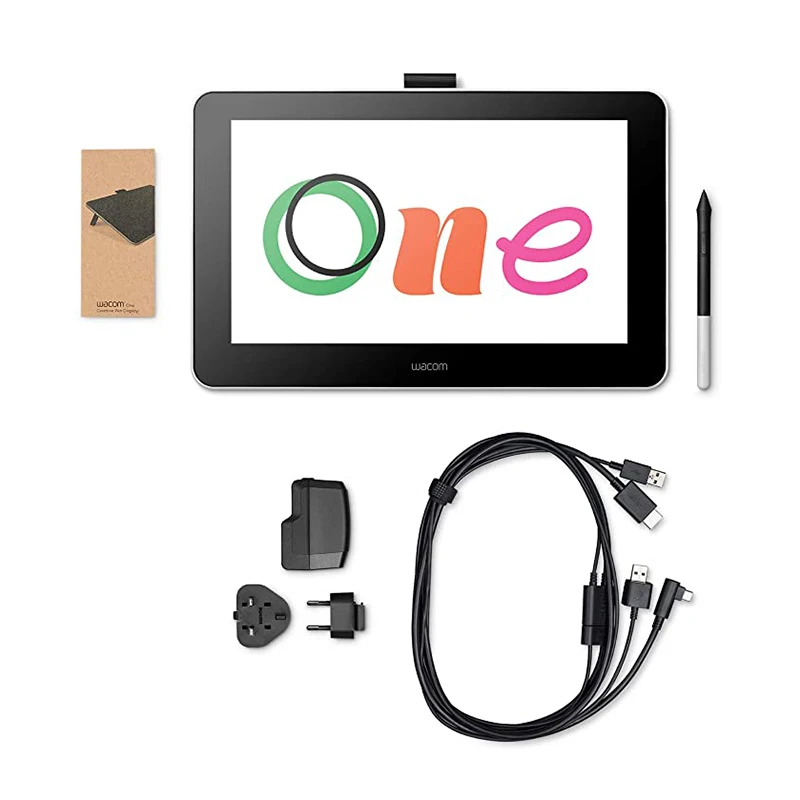

What's Included
Wacom One creative pen display 13.3"
Wacom One X-Shape Cable
Wacom One Pen
Quick Start Guide
Regulation sheet
AC adapter (10W)
AC plug head
3 replacement nibs
Hardware Requirements
HDMI port and standard USB-A port
I/O Ports
1 x Display Connector
Input Video Connector
Display connector
Input Video Signal
HDMI
System Requirements
Windows 7 & later
Mac OS 10.13 & later
